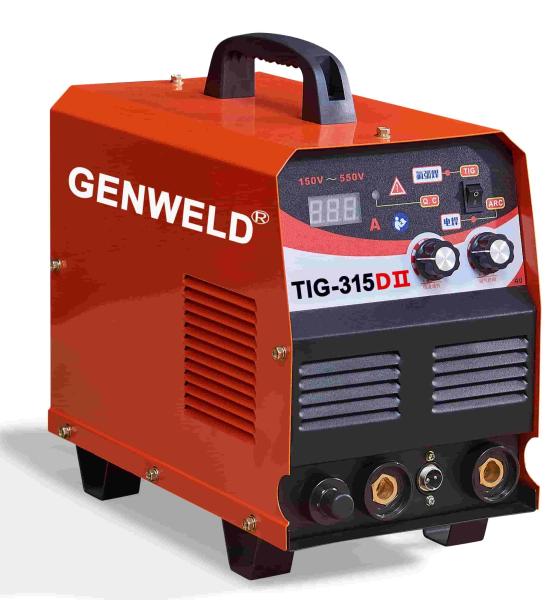

GENWELD Series Inverter ARC Welders
Features:
• The front panel is equipped with overheat-protection and over-current protection indicators. The current display is used to show the current data accurately. The acceptable input voltage range 130 - 260V.
• Three-layer PCB structure ensures the performance of the welding machine. Especially, the power supply board is more safe and stable.
• Hi-speed running fan with more optimized heat sink channel design, which makes the heat dissipation effect is 30% higher than the same type of inverter welding machine.
• Full bridge Inverter IGBT dual modules, large output voltage.
• Large capacitors are more flexible and support to connect with generator use.
• The whole series of products with hot arc starting, arc force, and anti-sticking functions. Easy to start the arc, low-pressure drop, comfortable operation.
• New dust-proof design, nice appearance, more cost-effective, more portable, and lighter.
Application field
• It’s widely used for many kinds of metal welding, like carbon steel, stainless, iron and etc.
| Model | MMA-140 |
| Input voltage (V) | 230V |
| Rated input power(KW) | 4 |
| Current range(A) | 20-130(A) |
| Rated input current(A) | 24 |
| Efficiency % | 85 |
| Duty Cycle@40℃ | 60% | 100% |
| Insulation Class | F | F |
| NO load Voltage(V) | 65 |
| Max. output current(A) | 130 | 100 |
| Max.output Voltage(V) | 25.2 | 24 |
| Max. output power(W) | 3276 | 2400 |
| Rated output current(A) | 130 | 100 |
| Rated output Voltage(V) | 25.2 | 24 |
| Electrode(mm) | 2.5/3.2 | 2.5/3.2 |
| Protection Class | IP23 |
| Dimension(mm) | 285*120*210 |
| Net weight (kg) | 3.6 |
| Packing Dimension(mm) | 320*150*250 |
| Gross weight(kg) | 5.4 |
| Welding cable(m) | 1.8 |
| Power cable+Plug(m) | 1.5 |
| Ground cable(m) | 1.2 |
